Scotsman: MDT6N


MDT6N ice maker parts

Search

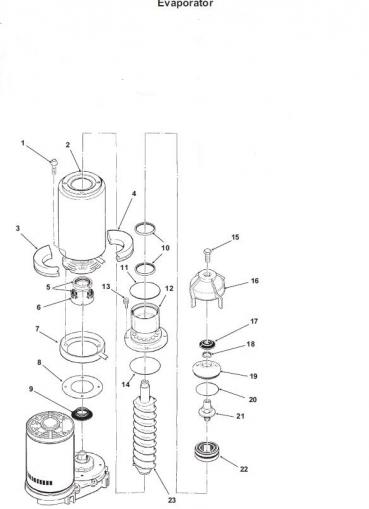

 ice maker parts illustration

Grid View:

Diagram# Image Part No. Description Price Qty
1 Part #: 03-1420-03 - USE SC03-1405-41 03-1420-03 USE SC03-1405-41 $8.00 Add to Cart Add to Cart
1 Part #: 03-1417-13 - TOOTHED LOCKWASHERS 03-1417-13 TOOTHED LOCKWASHERS $11.99 Add to Cart Add to Cart
2 Part #: A33194-020 - EVAPORATOR A33194-020 EVAPORATOR $2052.16 Add to Cart Add to Cart
3 Part #: 02-4358-01 - INSULATION-FREEZER 02-4358-01 INSULATION-FREEZER $36.21 Add to Cart Add to Cart
5 Part #: 02-0929-23 - WATER SEAL 02-0929-23 WATER SEAL $222.21 Add to Cart Add to Cart
6 Part #: A32777-001 - RING A32777-001 RING $59.40 Add to Cart Add to Cart
7 Part #: 02-3837-01 - DRIP PAN - PLASTIC 02-3837-01 DRIP PAN - PLASTIC $57.50 Add to Cart Add to Cart
8 Part #: 13-0704-00 - GASKET 13-0704-00 GASKET $24.53 Add to Cart Add to Cart
9 Part #: 02-4663-01 - WATER SHED - 1/4 HP 02-4663-01 WATER SHED - 1/4 HP $69.33 Add to Cart Add to Cart
10 Part #: 02-2977-01 - LIP SEAL 02-2977-01 LIP SEAL $84.17 Add to Cart Add to Cart
11 Part #: 13-0617-54 - 0-RING 13-0617-54 0-RING $30.13 Add to Cart Add to Cart
12 Part #: A32900-020 - BREAKER A32900-020 BREAKER $1409.25 Add to Cart Add to Cart
13 Part #: 03-1544-08 - SCREW 03-1544-08 SCREW $28.71 Add to Cart Add to Cart
14 Part #: 13-0617-45 - O-RING 13-0617-45 O-RING $21.69 Add to Cart Add to Cart
15 Part #: 03-1405-52 - HEX CAP SCREW 03-1405-52 HEX CAP SCREW $25.96 Add to Cart Add to Cart
16 Part #: 02-3001-01 - ICE SWEEP 02-3001-01 ICE SWEEP $87.24 Add to Cart Add to Cart
17 Part #: 13-0871-01 - WATER SHED 13-0871-01 WATER SHED $55.47 Add to Cart Add to Cart
18 Part #: 02-2978-01 - LIP SEAL 02-2978-01 LIP SEAL $66.10 Add to Cart Add to Cart
19 Part #: 02-3128-20 - COVER 02-3128-20 COVER $92.63 Add to Cart Add to Cart
20 Part #: 13-0617-52 - O-RING 13-0617-52 O-RING $34.48 Add to Cart Add to Cart
21 Part #: 08-0660-01 - AUGER STUD 08-0660-01 AUGER STUD $184.54 Add to Cart Add to Cart
22 Part #: A34559-020 - BEARING-SERVICE A34559-020 BEARING-SERVICE $380.81 Add to Cart Add to Cart
23 Part #: A38071-021 - AUGER - 12 INCH LONG A38071-021 AUGER - 12 INCH LONG $1104.31 Add to Cart Add to Cart

List View:

1
Part #: 03-1420-03 - USE SC03-1405-41

Part #:  03-1420-03

USE SC03-1405-41

Part #: 03-1420-03 - USE SC03-1405-41

$8.00

Add to Cart
1
Part #: 03-1417-13 - TOOTHED LOCKWASHERS

Part #:  03-1417-13

TOOTHED LOCKWASHERS

Part #: 03-1417-13 - TOOTHED LOCKWASHERS

$11.99

Add to Cart
2
Part #: A33194-020 - EVAPORATOR

Part #:  A33194-020

EVAPORATOR

Part #: A33194-020 - EVAPORATOR

$2052.16

Add to Cart
3
Part #: 02-4358-01 - INSULATION-FREEZER

Part #:  02-4358-01

INSULATION-FREEZER

Part #: 02-4358-01 - INSULATION-FREEZER

$36.21

Add to Cart
5
Part #: 02-0929-23 - WATER SEAL

Part #:  02-0929-23

WATER SEAL

Part #: 02-0929-23 - WATER SEAL

$222.21

Add to Cart
6
Part #: A32777-001 - RING

Part #:  A32777-001

RING

Part #: A32777-001 - RING

$59.40

Add to Cart
7
Part #: 02-3837-01 - DRIP PAN - PLASTIC

Part #:  02-3837-01

DRIP PAN - PLASTIC

Part #: 02-3837-01 - DRIP PAN - PLASTIC

$57.50

Add to Cart
8
Part #: 13-0704-00 - GASKET

Part #:  13-0704-00

GASKET

Part #: 13-0704-00 - GASKET

$24.53

Add to Cart
9
Part #: 02-4663-01 - WATER SHED - 1/4 HP

Part #:  02-4663-01

WATER SHED - 1/4 HP

Part #: 02-4663-01 - WATER SHED - 1/4 HP

$69.33

Add to Cart
10
Part #: 02-2977-01 - LIP SEAL

Part #:  02-2977-01

LIP SEAL

Part #: 02-2977-01 - LIP SEAL

$84.17

Add to Cart
11
Part #: 13-0617-54 - 0-RING

Part #:  13-0617-54

0-RING

Part #: 13-0617-54 - 0-RING

$30.13

Add to Cart
12
Part #: A32900-020 - BREAKER

Part #:  A32900-020

BREAKER

Part #: A32900-020 - BREAKER

$1409.25

Add to Cart
13
Part #: 03-1544-08 - SCREW

Part #:  03-1544-08

SCREW

Part #: 03-1544-08 - SCREW

$28.71

Add to Cart
14
Part #: 13-0617-45 - O-RING

Part #:  13-0617-45

O-RING

Part #: 13-0617-45 - O-RING

$21.69

Add to Cart
15
Part #: 03-1405-52 - HEX CAP SCREW

Part #:  03-1405-52

HEX CAP SCREW

Part #: 03-1405-52 - HEX CAP SCREW

$25.96

Add to Cart
16
Part #: 02-3001-01 - ICE SWEEP

Part #:  02-3001-01

ICE SWEEP

Part #: 02-3001-01 - ICE SWEEP

$87.24

Add to Cart
17
Part #: 13-0871-01 - WATER SHED

Part #:  13-0871-01

WATER SHED

Part #: 13-0871-01 - WATER SHED

$55.47

Add to Cart
18
Part #: 02-2978-01 - LIP SEAL

Part #:  02-2978-01

LIP SEAL

Part #: 02-2978-01 - LIP SEAL

$66.10

Add to Cart
19
Part #: 02-3128-20 - COVER

Part #:  02-3128-20

COVER

Part #: 02-3128-20 - COVER

$92.63

Add to Cart
20
Part #: 13-0617-52 - O-RING

Part #:  13-0617-52

O-RING

Part #: 13-0617-52 - O-RING

$34.48

Add to Cart
21
Part #: 08-0660-01 - AUGER STUD

Part #:  08-0660-01

AUGER STUD

Part #: 08-0660-01 - AUGER STUD

$184.54

Add to Cart
22
Part #: A34559-020 - BEARING-SERVICE

Part #:  A34559-020

BEARING-SERVICE

Part #: A34559-020 - BEARING-SERVICE

$380.81

Add to Cart
23
Part #: A38071-021 - AUGER - 12 INCH LONG

Part #:  A38071-021

AUGER - 12 INCH LONG

Part #: A38071-021 - AUGER - 12 INCH LONG

$1104.31

Add to Cart

The Scotsman MDT6N is a commercial countertop ice dispenser built for the performance and reliability demands of hotel guest areas, healthcare facilities, corporate cafeterias, office lobbies, and self-serve beverage stations. Scotsman ice machines set the performance and reliability standard that other commercial ice machine manufacturers measure themselves against. The MDT6N is engineered for dependable commercial ice production in environments where uptime is essential to daily operations. At FixIce, we stock the full range of replacement parts for the Scotsman MDT6N, giving HVAC and refrigeration technicians, hotel maintenance departments, healthcare facility maintenance teams, and foodservice equipment repair professionals exactly what they need to keep this machine running without prolonged downtime.

The FixIce Scotsman MDT6N parts catalog covers every component the machine depends on: auger motors, solenoid valves, control boards, water delivery valves, wiring harnesses, ice-full sensors, and dispensing components. We source all parts to OEM specifications - because a commercial ice machine that has just been serviced needs to perform at spec, not close to it. Our inventory philosophy is simple: stock the part before the technician needs it, not after. That means MDT6N components that require special orders elsewhere are standard stocked items at FixIce, available for same-day fulfillment when your service call comes in.

A well-maintained Scotsman MDT6N is a competitive asset in the commercial settings it serves - in hotel guest areas, healthcare facilities, corporate cafeterias, office lobbies, and self-serve beverage stations, consistent ice output directly affects service quality and revenue. FixIce makes professional maintenance realistic by ensuring that every MDT6N part is in stock and ready to ship when the job requires it. We support HVAC and refrigeration technicians, hotel maintenance departments, healthcare facility maintenance teams, and foodservice equipment repair professionals with stocked OEM-compatible parts, same-day and next-day fulfillment nationwide, and staff who can help troubleshoot Scotsman MDT6N models by symptom when the service manual is not enough. Browse our Scotsman MDT6N parts catalog or call FixIce today.
