Home » Parts » Scotsman » Scotsman: MDT6N Larger View

Scotsman: MDT6N


MDT6N ice maker parts

Search

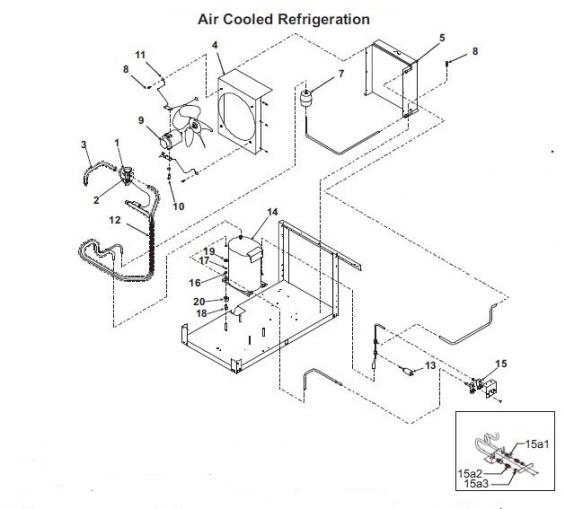

 ice maker parts illustration

Grid View:

Diagram# Image Part No. Description Price Qty
1 Part #: 02-4406-01 - USE SC19-0599-06 02-4406-01 USE SC19-0599-06 $0.00 Not In Stock
2 Part #: 11-0488-21 - THERMO EXP VALVE 11-0488-21 THERMO EXP VALVE $500.67 Add to Cart Add to Cart
4 Part #: A35911-001 - FAN SHROUD A35911-001 FAN SHROUD $92.12 Add to Cart Add to Cart
5 Part #: 18-8732-01 - CONDENSER A/C 18-8732-01 CONDENSER A/C $559.08 Add to Cart Add to Cart
6 Part #: 18-3732-01 - FAN BLADE 18-3732-01 FAN BLADE $122.49 Add to Cart Add to Cart
7 Part #: 02-3319-02 - DRIER 02-3319-02 DRIER $69.33 Add to Cart Add to Cart
8 Part #: 03-1645-01 - SCREW 03-1645-01 SCREW $12.92 Add to Cart Add to Cart
9 Part #: 18-5505-01 - MOTOR FAN 18-5505-01 MOTOR FAN $404.63 Add to Cart Add to Cart
10 Part #: 03-1531-08 - SCREW 03-1531-08 SCREW $11.99 Add to Cart Add to Cart
11 Part #: 02-3333-01 - FAN MOTOR BRACKET 02-3333-01 FAN MOTOR BRACKET $38.13 Not In Stock
12 Part #: A35949-001 - SUCTION LINE A35949-001 SUCTION LINE $205.22 Add to Cart Add to Cart
13 Part #: 11-0501-22 - CONTROL PRESSURE 11-0501-22 CONTROL PRESSURE $183.63 Add to Cart Add to Cart
14 Part #: 18-8721-21 - COMPRESSOR 18-8721-21 COMPRESSOR $2912.11 Not In Stock
14 Part #: 18-8711-50 - OVERLOAD 18-8711-50 OVERLOAD $111.19 Add to Cart Add to Cart
14 Part #: 18-8949-21 - COMPRESSOR RST55 18-8949-21 COMPRESSOR RST55 $2142.07 Add to Cart Add to Cart
14 Part #: 18-8949-50 - SERVICE PART OVERLOA 18-8949-50 SERVICE PART OVERLOA $58.78 Add to Cart Add to Cart
15 Part #: 16-0832-02 - VALVE SET SCREW CAP 16-0832-02 VALVE SET SCREW CAP $17.73 Not In Stock
15 Part #: 16-0832-03 - VALVE CORE CAP 16-0832-03 VALVE CORE CAP $24.65 Not In Stock
15 Part #: 16-0832-20 - PROCESS VALVE KIT 16-0832-20 PROCESS VALVE KIT $116.67 Add to Cart Add to Cart
15.1 Part #: 16-1137-01 - SEAT SERVICE VALVE 16-1137-01 SEAT SERVICE VALVE $27.53 Add to Cart Add to Cart
15.2 Part #: 16-1139-01 - CORE SERVICE VALVE 16-1139-01 CORE SERVICE VALVE $44.52 Add to Cart Add to Cart
15.3 Part #: 16-1140-01 - CAP SERVICE PORT 16-1140-01 CAP SERVICE PORT $32.02 Add to Cart Add to Cart
16 Part #: 03-1407-07 - TYPE A PLAIN WASHER 03-1407-07 TYPE A PLAIN WASHER $13.21 Add to Cart Add to Cart
17 Part #: 03-1410-04 - HELICAL SPRING LOCKW 03-1410-04 HELICAL SPRING LOCKW $11.99 Add to Cart Add to Cart
18 Part #: 18-2200-28 - MOUNTING GROMMET 18-2200-28 MOUNTING GROMMET $19.87 Add to Cart Add to Cart
19 Part #: 03-1406-10 - HEX NUTS 03-1406-10 HEX NUTS $11.99 Add to Cart Add to Cart
20 Part #: 18-2200-27 - MOUNTING SLEEVE 18-2200-27 MOUNTING SLEEVE $16.88 Add to Cart Add to Cart

List View:

1
Part #: 02-4406-01 - USE SC19-0599-06

Part #:  02-4406-01

(Obsolete)

USE SC19-0599-06

Part #: 02-4406-01 - USE SC19-0599-06

$0.00

Not In Stock
2
Part #: 11-0488-21 - THERMO EXP VALVE

Part #:  11-0488-21

THERMO EXP VALVE

Part #: 11-0488-21 - THERMO EXP VALVE

$500.67

Add to Cart
4
Part #: A35911-001 - FAN SHROUD

Part #:  A35911-001

FAN SHROUD

Part #: A35911-001 - FAN SHROUD

$92.12

Add to Cart
5
Part #: 18-8732-01 - CONDENSER A/C

Part #:  18-8732-01

CONDENSER A/C

Part #: 18-8732-01 - CONDENSER A/C

$559.08

Add to Cart
6
Part #: 18-3732-01 - FAN BLADE

Part #:  18-3732-01

FAN BLADE

Part #: 18-3732-01 - FAN BLADE

$122.49

Add to Cart
7
Part #: 02-3319-02 - DRIER

Part #:  02-3319-02

DRIER

Part #: 02-3319-02 - DRIER

$69.33

Add to Cart
8
Part #: 03-1645-01 - SCREW

Part #:  03-1645-01

SCREW

Part #: 03-1645-01 - SCREW

$12.92

Add to Cart
9
Part #: 18-5505-01 - MOTOR FAN

Part #:  18-5505-01

MOTOR FAN

Part #: 18-5505-01 - MOTOR FAN

$404.63

Add to Cart
10
Part #: 03-1531-08 - SCREW

Part #:  03-1531-08

SCREW

Part #: 03-1531-08 - SCREW

$11.99

Add to Cart
11
Part #: 02-3333-01 - FAN MOTOR BRACKET

Part #:  02-3333-01

(Obsolete)

FAN MOTOR BRACKET

Part #: 02-3333-01 - FAN MOTOR BRACKET

$38.13

Not In Stock
12
Part #: A35949-001 - SUCTION LINE

Part #:  A35949-001

SUCTION LINE

Part #: A35949-001 - SUCTION LINE

$205.22

Add to Cart
13
Part #: 11-0501-22 - CONTROL PRESSURE

Part #:  11-0501-22

CONTROL PRESSURE

Part #: 11-0501-22 - CONTROL PRESSURE

$183.63

Add to Cart
14
Part #: 18-8721-21 - COMPRESSOR

Part #:  18-8721-21

COMPRESSOR

Part #: 18-8721-21 - COMPRESSOR

$2912.11

Not In Stock
14
Part #: 18-8711-50 - OVERLOAD

Part #:  18-8711-50

OVERLOAD

Part #: 18-8711-50 - OVERLOAD

$111.19

Add to Cart
14
Part #: 18-8949-21 - COMPRESSOR RST55

Part #:  18-8949-21

COMPRESSOR RST55

Part #: 18-8949-21 - COMPRESSOR RST55

$2142.07

Add to Cart
14
Part #: 18-8949-50 - SERVICE PART OVERLOA

Part #:  18-8949-50

SERVICE PART OVERLOA

Part #: 18-8949-50 - SERVICE PART OVERLOA

$58.78

Add to Cart
15
Part #: 16-0832-02 - VALVE SET SCREW CAP

Part #:  16-0832-02

VALVE SET SCREW CAP

Part #: 16-0832-02 - VALVE SET SCREW CAP

$17.73

Not In Stock
15
Part #: 16-0832-03 - VALVE CORE CAP

Part #:  16-0832-03

VALVE CORE CAP

Part #: 16-0832-03 - VALVE CORE CAP

$24.65

Not In Stock
15
Part #: 16-0832-20 - PROCESS VALVE KIT

Part #:  16-0832-20

PROCESS VALVE KIT

Part #: 16-0832-20 - PROCESS VALVE KIT

$116.67

Add to Cart
15.1
Part #: 16-1137-01 - SEAT SERVICE VALVE

Part #:  16-1137-01

SEAT SERVICE VALVE

Part #: 16-1137-01 - SEAT SERVICE VALVE

$27.53

Add to Cart
15.2
Part #: 16-1139-01 - CORE SERVICE VALVE

Part #:  16-1139-01

CORE SERVICE VALVE

Part #: 16-1139-01 - CORE SERVICE VALVE

$44.52

Add to Cart
15.3
Part #: 16-1140-01 - CAP SERVICE PORT

Part #:  16-1140-01

CAP SERVICE PORT

Part #: 16-1140-01 - CAP SERVICE PORT

$32.02

Add to Cart
16
Part #: 03-1407-07 - TYPE A PLAIN WASHER

Part #:  03-1407-07

TYPE A PLAIN WASHER

Part #: 03-1407-07 - TYPE A PLAIN WASHER

$13.21

Add to Cart
17
Part #: 03-1410-04 - HELICAL SPRING LOCKW

Part #:  03-1410-04

HELICAL SPRING LOCKW

Part #: 03-1410-04 - HELICAL SPRING LOCKW

$11.99

Add to Cart
18
Part #: 18-2200-28 - MOUNTING GROMMET

Part #:  18-2200-28

MOUNTING GROMMET

Part #: 18-2200-28 - MOUNTING GROMMET

$19.87

Add to Cart
19
Part #: 03-1406-10 - HEX NUTS

Part #:  03-1406-10

HEX NUTS

Part #: 03-1406-10 - HEX NUTS

$11.99

Add to Cart
20
Part #: 18-2200-27 - MOUNTING SLEEVE

Part #:  18-2200-27

MOUNTING SLEEVE

Part #: 18-2200-27 - MOUNTING SLEEVE

$16.88

Add to Cart

The Scotsman MDT6N is a commercial countertop ice dispenser built for the performance and reliability demands of hotel guest areas, healthcare facilities, corporate cafeterias, office lobbies, and self-serve beverage stations. Scotsman ice machines set the performance and reliability standard that other commercial ice machine manufacturers measure themselves against. The MDT6N is engineered for dependable commercial ice production in environments where uptime is essential to daily operations. At FixIce, we stock the full range of replacement parts for the Scotsman MDT6N, giving HVAC and refrigeration technicians, hotel maintenance departments, healthcare facility maintenance teams, and foodservice equipment repair professionals exactly what they need to keep this machine running without prolonged downtime.

The FixIce Scotsman MDT6N parts catalog covers every component the machine depends on: auger motors, solenoid valves, control boards, water delivery valves, wiring harnesses, ice-full sensors, and dispensing components. We source all parts to OEM specifications - because a commercial ice machine that has just been serviced needs to perform at spec, not close to it. Our inventory philosophy is simple: stock the part before the technician needs it, not after. That means MDT6N components that require special orders elsewhere are standard stocked items at FixIce, available for same-day fulfillment when your service call comes in.

A well-maintained Scotsman MDT6N is a competitive asset in the commercial settings it serves - in hotel guest areas, healthcare facilities, corporate cafeterias, office lobbies, and self-serve beverage stations, consistent ice output directly affects service quality and revenue. FixIce makes professional maintenance realistic by ensuring that every MDT6N part is in stock and ready to ship when the job requires it. We support HVAC and refrigeration technicians, hotel maintenance departments, healthcare facility maintenance teams, and foodservice equipment repair professionals with stocked OEM-compatible parts, same-day and next-day fulfillment nationwide, and staff who can help troubleshoot Scotsman MDT6N models by symptom when the service manual is not enough. Browse our Scotsman MDT6N parts catalog or call FixIce today.
