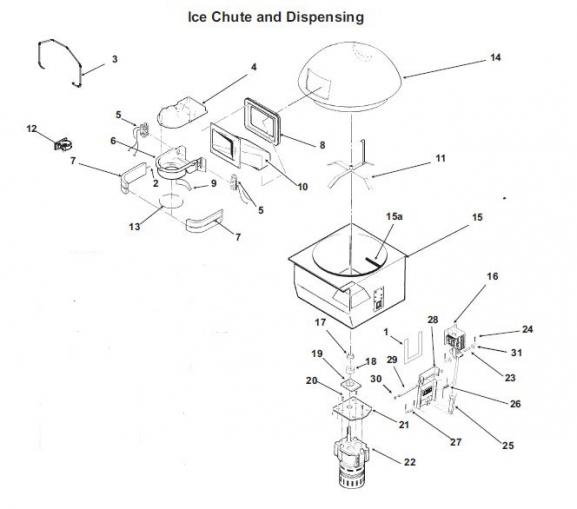

Scotsman: MDT6N

1

Part #:  02-3233-01

GASKET

$41.77

3

Part #:  A34969-001

BAIL/CLAMP

$63.02

4

Part #:  02-2957-02

ICE CHUTE COVER

$62.94

5

Part #:  12-2803-01

HARNESS

$53.34

5

Part #:  12-2802-01

HARNESS

$50.94

6

Part #:  02-2958-01

ICE CHUTE

$69.40

7

Part #:  A32963-001

INSULATION TOP HALF

$47.59

8

Part #:  13-0875-01

GASKET

$72.01

9

Part #:  A33102-001

INSULATION COLLAR IN

$37.03

10

Part #:  02-2973-02

ICE CHUTE-EXTENSION

$197.40

11

Part #:  02-3116-01

AGITATOR

$700.12

12

Part #:  02-3268-01

HOSE CLIP

$29.69

13

Part #:  13-0617-54

0-RING

$30.13

15

Part #:  A32735-001

ROD

$68.07

15

Part #:  A34015-001

(Obsolete)

BIN ASSY. and MACHINING SD

$492.00

16

Part #:  A32683-001

(Obsolete)

DOOR SOLENOID

$233.71

17

Part #:  A32698-001

MOTOR SHAFT SEAL

$90.31

18

Part #:  A32693-001

MOTOR SHAFT SEAL-ROU

$54.07

19

Part #:  A32692-001

SQUARE MOTOR GASKET

$84.52

20

Part #:  03-1418-15

(Obsolete)

FLAT HEAD SCREW

$10.51

22

Part #:  A32672-001

(Obsolete)

AGITATOR MOTOR HEATE

$75.78

22

Part #:  12-2368-01

MOTOR

$3640.06

22

Part #:  A32685-001

(Obsolete)

LINKAGE PIN-MED.

$66.62

24

Part #:  03-0396-01

(Obsolete)

PIN COTTER

$11.99

25

Part #:  02-3206-01

SOLENOID LINK

$66.10

26

Part #:  A32690-001

(Obsolete)

SPRING-DISPENSER DOO

$40.01

27

Part #:  A32687-001

LINKAGE PIN-SHORT

$91.02

28

Part #:  A32787-001

DOOR

$410.59

29

Part #:  A32684-001

DOOR ROD LONG

$66.18

30

Part #:  03-1539-09

RETAINING RING

$22.70

31

Part #:  03-1407-02

(Obsolete)

TYPE A PLAIN WASHERS

$11.99
