| Diagram# |
Image |
Part No. |
Description |
Price |
Qty |
|
|
 |
1860614680 |
Splash Guard |
$25.00 |
|
|
|
 |
1854800500 |
3A fuse of controller |
$1.00 |
|
|
| 3 |
 |
1885000202 |
Condenser |
$129.00 |
|
|
| 4 |
|
1861511002 |
Discharge tube |
$12.00 |
|
|
| 5 |
 |
1858421900 |
Compressor |
$265.00 |
|
|
| 9.1 |
 |
549738100 |
Fan blade (ø200X28°) |
$29.00 |
|
|
| 9.2 |
 |
1858200601 |
EBM motor 5W |
$74.00 |
|
|
| 18 |
 |
1880017701 |
Evaporator(ice mold) |
$204.00 |
|
 |
| 19 |
 |
1880001600 |
Water distribution tube |
$6.00 |
|
|
| 20 |
 |
1861701600 |
Ice slideway replaced by 1861701601 |
$30.00 |
|
|
| 21 |
 |
1851700500 |
Temperature sensor of evaporator |
$18.00 |
|
|
| 22 |
 |
1854005801 |
Magnetism switch (5700) |
$29.00 |
|
|
| 25 |
 |
1864800100 |
Ice scoop |
$6.00 |
|
|
| 26 |
|
1864400201 |
Top hinge cover |
$4.00 |
|
|
| 30 |
 |
1854205300 |
Control box |
$201.00 |
|
|
| 33 |
 |
1880001701 |
Floater valve (replaces 1880001700) |
$29.00 |
|
|
| 41 |
 |
1858900600 |
Water pump replaces 1858900500 and 1858900900
|
$99.00 |
|
|
| 46 |
|
1853113800 |
Power cord |
$15.00 |
|
|
| 49 |
|
1811306020 |
Water supply hose |
$25.00 |
|
|
| 51 |
 |
1864526301 |
Water inlet |
$9.00 |
|
|
| 54 |
 |
1864603800 |
Drainage plug |
$1.00 |
|
|
| 58 |
 |
1880015400 |
Front roller/ Brake Caster |
$6.00 |
|
|
| 59 |
 |
1880015300 |
Rear roller/ Versatile Caster |
$6.00 |
|
|
| 61.1 |
 |
1880014800 |
Right foot |
$7.00 |
|
|
| 61.2 |
 |
1880014700 |
Left foot |
$7.00 |
|
|
| 64.1 |
 |
1854000700 |
Clean switch |
$7.00 |
|
|
| 66 |
|
1805000410 |
Capillary tube |
$4.00 |
|
|
| 67 |
 |
1880007500 |
Drier |
$11.00 |
|
|
| 70.1 |
 |
1854703310 |
Hot gas valve body (Zhongbao) |
$97.00 |
|
|
| 70.2 |
 |
1854703321 |

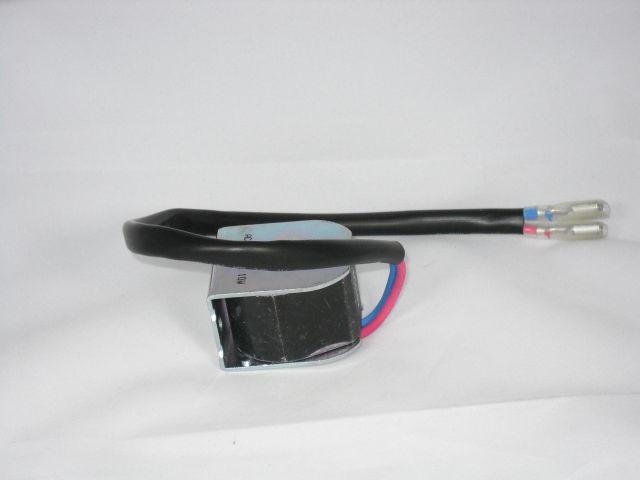

hot gas valve coil FDF2A |
$49.00 |
|
|
| 71 |
 |
1851700401 |
Temperature sensor of the condenser |
$37.00 |
|
|
