| Diagram# |
Image |
Part No. |
Description |
Price |
Qty |
|
|
 |
1854800500 |
3A fuse of controller |
$1.00 |
|
|
|
 |
1851762600 |

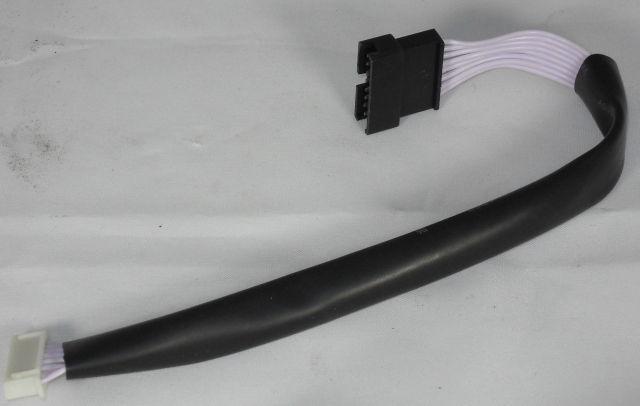

Wire Assembly connecting the pc board |
$8.00 |
|
|
|
 |

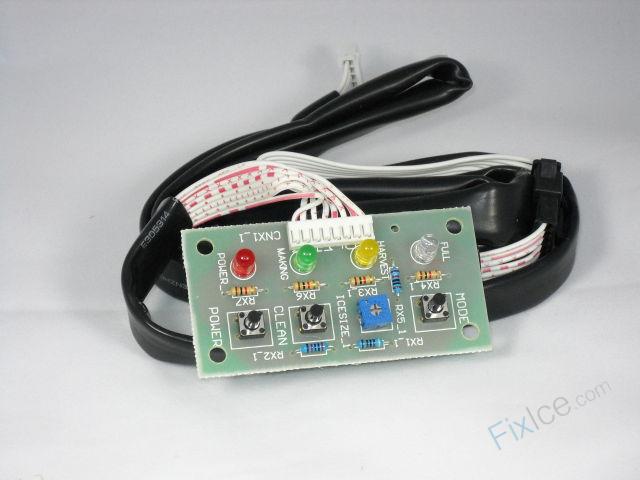

1854303600 |
Button Control Panel (with chip for controller) |
$90.00 |
|
|
|
 |
1858442400 |

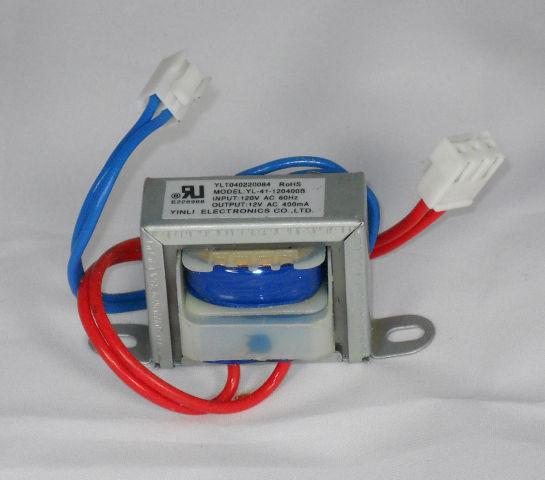

Transformer |
$18.00 |
|
|
| 1 |
 |
1885000202 |

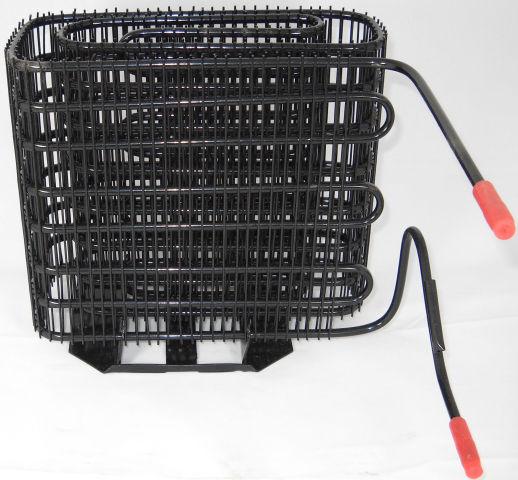

Condenser |
$129.00 |
|
|
| 3 |
 |

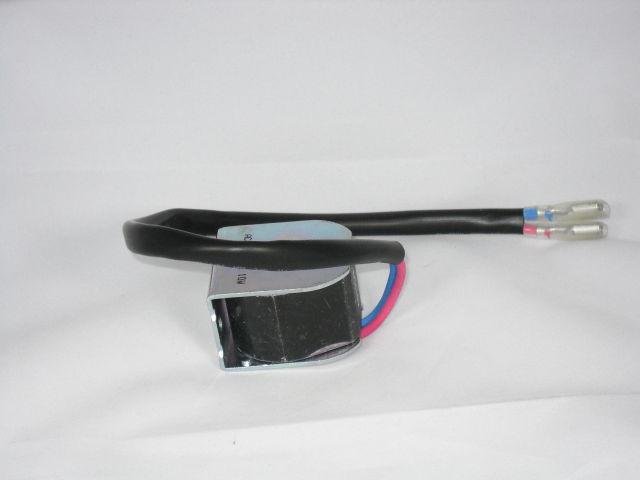

1854703320 |
Hot gas valve coil (Zhongbao) |
$45.00 |
|
|
| 3.1 |
 |
1854703310 |
Hot gas valve body (Zhongbao) |
$97.00 |
|
|
| 4 |
 |
1880007500 |
Drier |
$11.00 |
|
|
| 8 |
 |

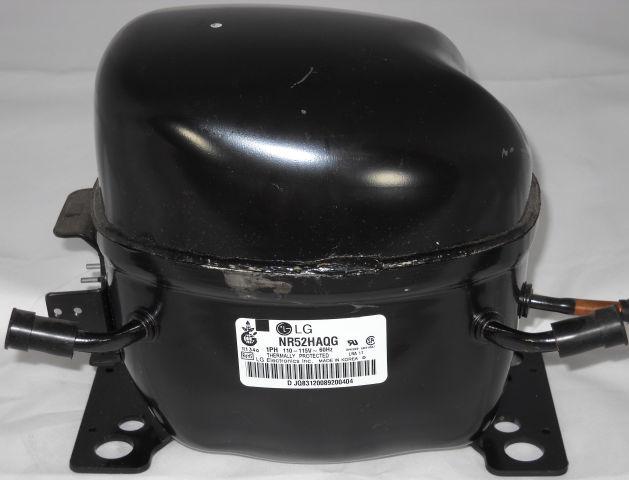

1858421900 |
Compressor |
$265.00 |
|
|
| 8.1 |
 |

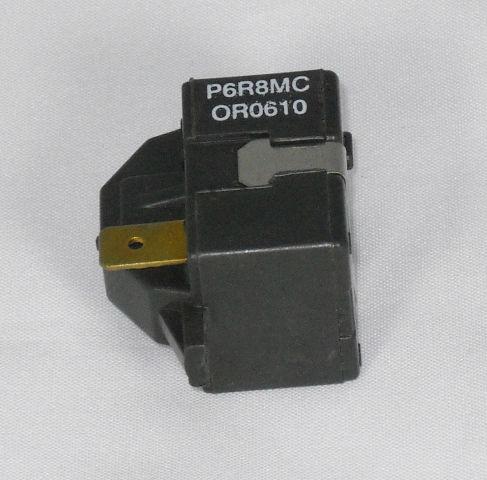

1858460900 |
Starting relay |
$15.00 |
|
|
| 8.2 |
 |
1858451100 |

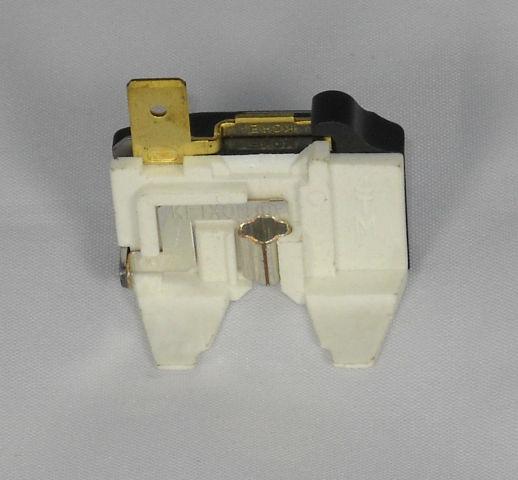

Protector |
$15.00 |
|
|
| 9 |
 |
1858200601 |
EBM motor 5W |
$74.00 |
|
|
| 9.2 |
 |
549738100 |
Fan blade (ø200X28°) |
$29.00 |
|
|
| 11 |
 |

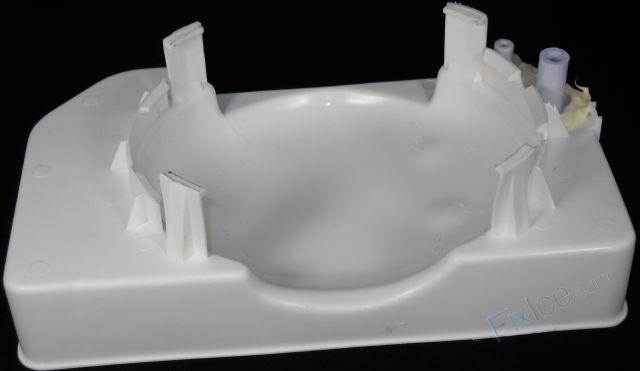

1864801901 |
Water pan on the compressor |
$11.00 |
|
 |
| 11.1 |
 |
1866912301 |
Water level alarm sensor |
$5.00 |
|
|
| 11.2 |
 |
1815208300 |
Rubber pad (between Compressor and Water pan) |
$1.00 |
|
|
| 14 |
 |
1880014700 |

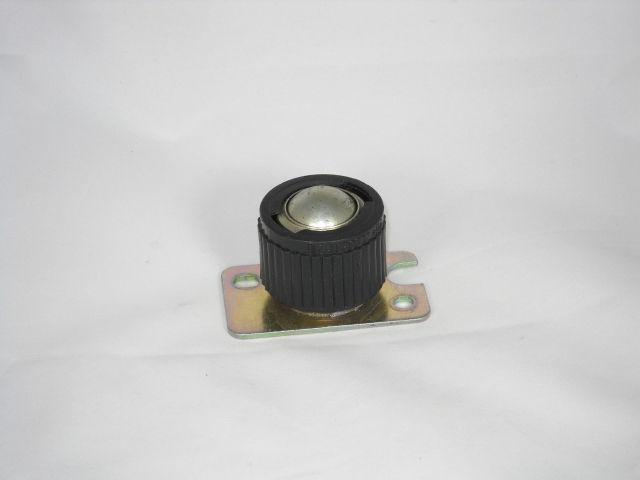

Left foot |
$7.00 |
|
|
| 15 |
 |
1880014800 |
Right foot |
$7.00 |
|
|
| 20 |
 |

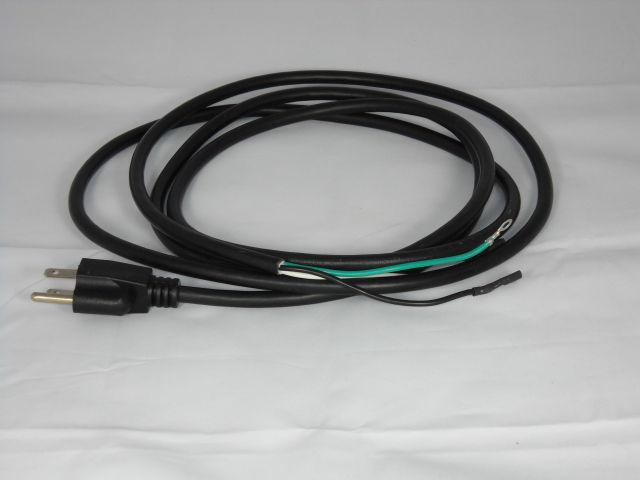

1853111100 |
Power cord |
$14.00 |
|
|
| 23 |
 |
1858900600 |
Water pump replaces 1858900500 and 1858900900
|
$99.00 |
|
|
| 27 |
 |

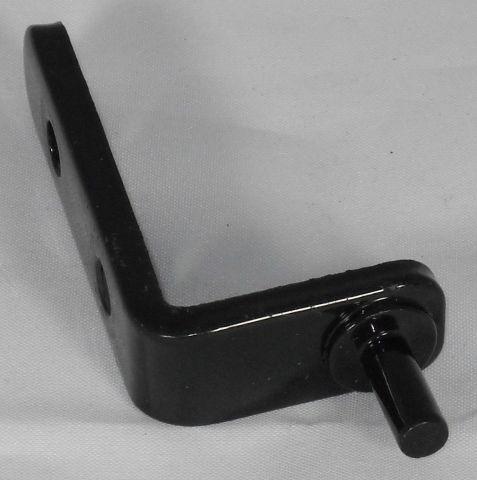

1860413503 |
Bottom Hinge |
$5.00 |
|
|
| 30 |
 |
1845744000 |

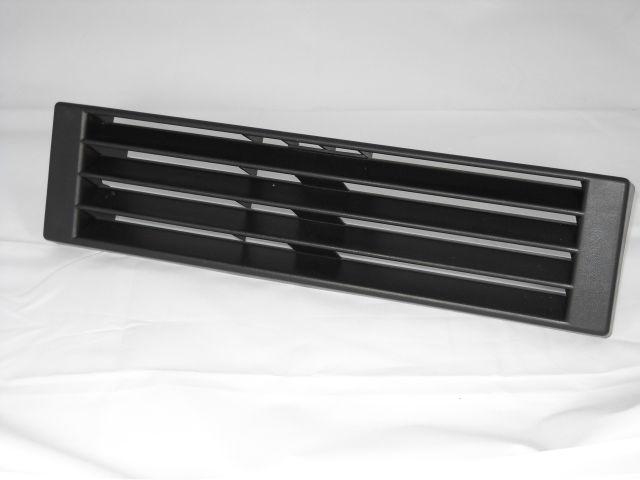

Louver |
$25.00 |
|
|
| 31 |
 |
1864508100 |
Drain plug |
$4.00 |
|
|
| 31.2 |
 |

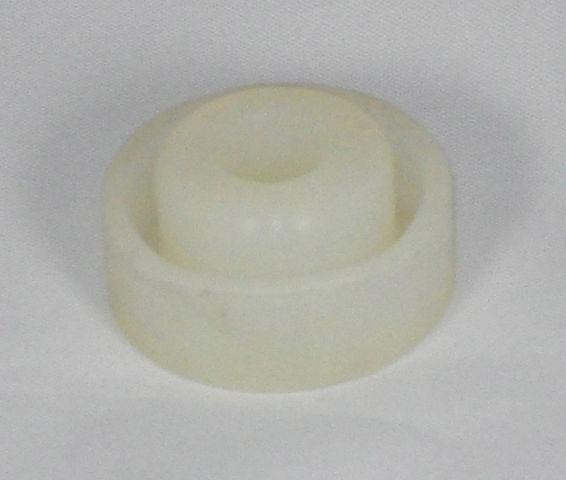

1864619100 |
Drain nut |
$4.00 |
|
|
| 32 |
 |
1880001701 |
Floater valve (replaces 1880001700) |
$29.00 |
|
|
| 33 |
 |
1864526301 |
Water inlet |
$9.00 |
|
|
| 34 |
 |
1864529100 |
Water inlet pipe screw |
$8.00 |
|
|
| 38 |
 |

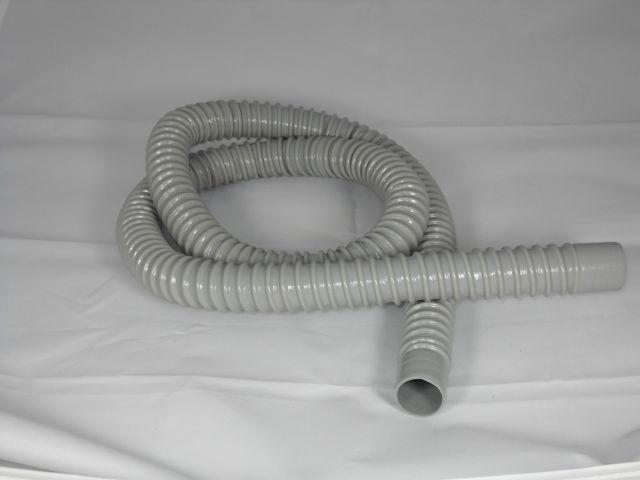

1811306014 |
Water supply pipe (020) |
$35.00 |
|
|
| 39 |
 |

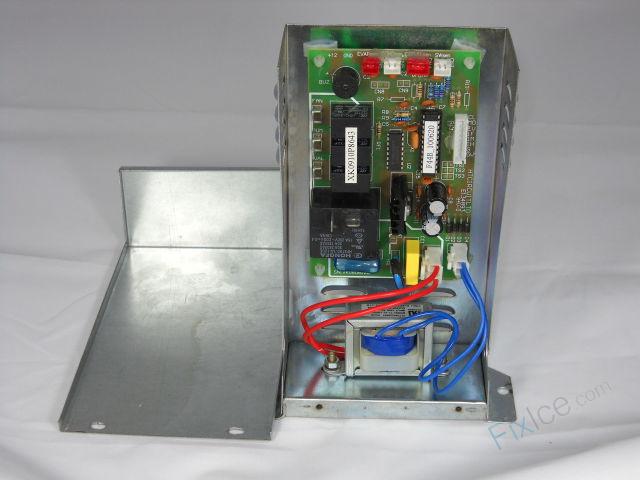

1854205800 |
Control box |
$210.00 |
|
|
| 39.1 |
 |

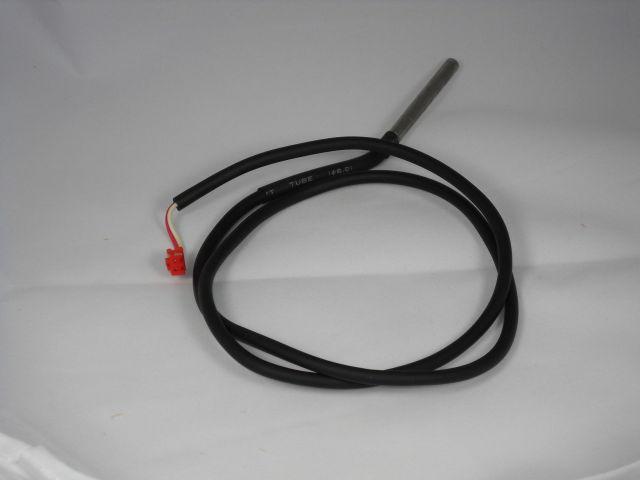

1851700401 |
Temperature sensor of the condenser |
$37.00 |
|
|
| 39.2 |
 |
1851700501 |
Temperature sensor of the evaporator |
$25.00 |
|
|
| 41 |
 |
1860413301 |
Top hinge |
$15.00 |
|
|
| 43 |
 |
1864400101 |
Top hinge cover |
$4.00 |
|
|
| 44 |
 |
1864800100 |
Ice scoop |
$6.00 |
|
|
| 45 |
 |
1880001600 |

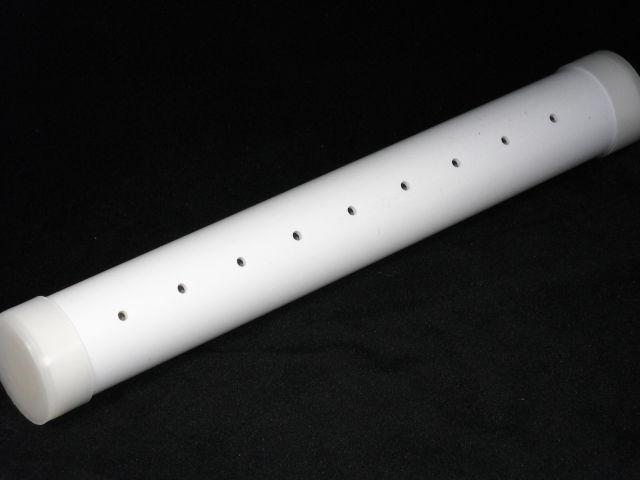

Water distribution tube |
$6.00 |
|
|
| 46 |
 |
1880017701 |
Evaporator(ice mold) |
$204.00 |
|
|
| 48 |
 |
1861701600 |
Ice slideway replaced by 1861701601 |
$30.00 |
|
|
| 49 |
 |
1854005300 |
magnetism switch |
$26.00 |
|
|
| 57 |
 |

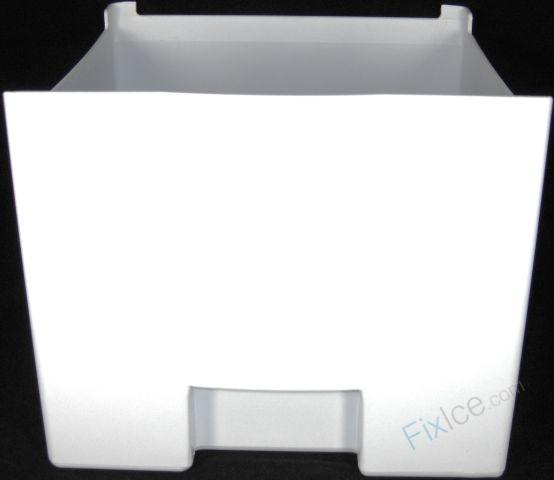

1864805200 |
Ice storage bin |
$50.00 |
|
|
| 63 |
 |
1864507400 |
Long drain pipe |
$20.00 |
|
|
| 64 |
 |
1864603800 |
Drainage plug |
$1.00 |
|
|
| 79 |
 |
1853703500 |

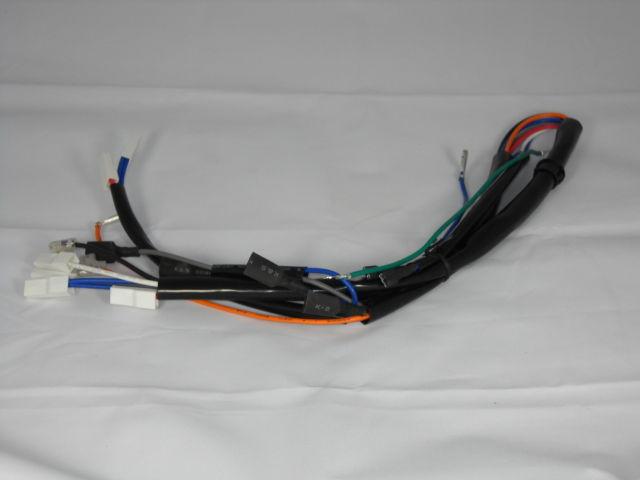

Wiring harness |
$30.00 |
|
|
UID).INBOX)18675.jpg&h=340&w=241 "MIM50 ice maker parts")
