| Diagram# |
Image |
Part No. |
Description |
Price |
Qty |
|
| 0 |
 |
1864509200 |
Gasket/Washer of water inlet connector |
$1.00 |
|
|
| 1 |
 |
1860120101 |
Front panel |
$199.00 |
|
|
| 2 |
 |
1864802401 |
Water trough |
$80.00 |
|
 |
| 3 |
 |
1880001701 |
Floater valve (replaces 1880001700) |
$29.00 |
|
|
| 4 |
 |
1864600403 |
Water curtain |
$34.00 |
|
|
| 6 |
 |

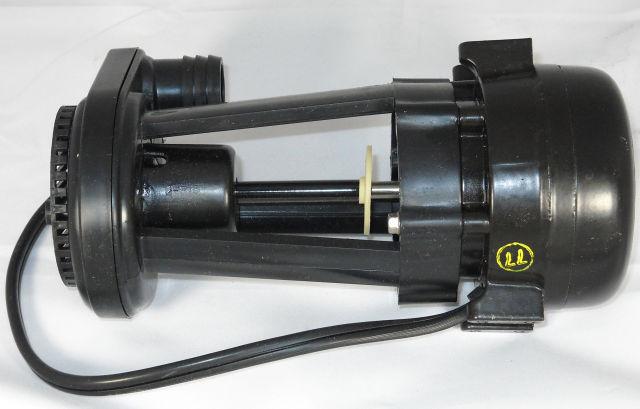

1858904400 |
water pump replaces 1858904000 |
$299.00 |
|
|
| 8 |
 |
1880026300 |
Evaporator |
$561.00 |
|
|
| 9 |
|
1880002000 |
Water distributor tube |
$23.00 |
|
|
| 14 |
 |
1854000600 |
Power switch |
$7.00 |
|
|
| 17 |
 |
1854240300 |
Button control panel |
$46.00 |
|
|
| 19 |
 |
1854205900 |
Main control panel replaced by (1854205901) |
$176.00 |
|
|
| 19.1 |
 |
1854800300 |
15A Fuse of Controller |
$2.00 |
|
|
| 19.2 |
 |
1851700802 |
Condenser sensor |
$49.00 |
|
|
| 19.3 |
 |
1851700901 |
Temperature sensor of evaporator replaces 1851700900 |
$28.00 |
|
|
| 20 |
 |
1858442400 |
Transformer |
$18.00 |
|
|
| 24 |
 |
1854700800 |
Drain valve |
$149.00 |
|
|
| 28 |
 |

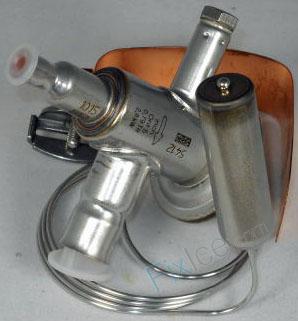

1854601900 |
Expansion valve replaced by1854601901 |
$163.00 |
|
|
| 29.1 |
|
1854702800 |
Hot gas valve body |
$85.00 |
|
|
| 29.2 |
|
1854702700 |
Hot gas valve coil |
$41.00 |
|
|
| 30 |
|
1853703801 |
Wiring harness |
$30.00 |
|
|
| 31 |
 |
1861530802 |
Water outlet connector |
$55.00 |
|
|
| 32 |
 |
1864526600 |
Water inlet connector |
$8.00 |
|
|
| 36 |
|
1880014001 |
Condenser |
$399.00 |
|
|
| 38 |
 |
1880008300 |
Drier |
$36.00 |
|
|
| 41.1 |
 |
1858421200 |
Compressor |
$599.00 |
|
|
| 41.2 |
 |
1858441400 |
Starting device component |
$181.00 |
|
|
| 41.3 |
|
1858451300 |
Protector |
$15.00 |
|
|
| 45.1 |
 |

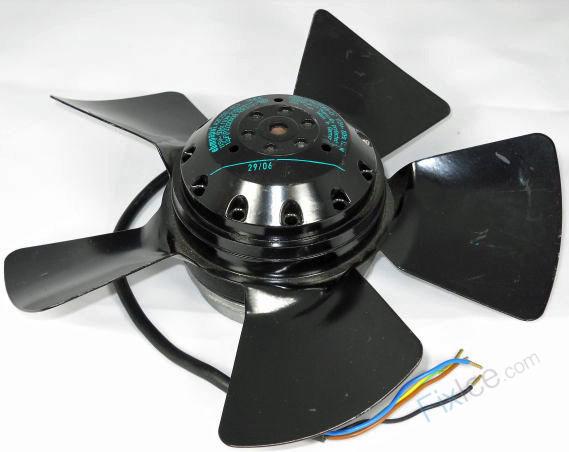

1858202100 |
Condenser fan motor |
$140.00 |
|
|
| 45.2 |
 |
1858441500 |
Fan motor capacitor(6uf) |
$37.00 |
|
|
| 49 |
 |
1871018500 |
Microswitch |
$21.00 |
|
|
| 52 |
|
1860114402 |
Right outer panel |
$110.00 |
|
|
| 53 |
 |
1864860201 |
Louver |
$23.00 |
|
|
