Diagram# |
Image |
Part No. |
Description |
Price |
Qty |
|
0 |
 |
1864509200 |
Gasket/Washer of water inlet connector |
$1.00 |
|
|
3 |
 |

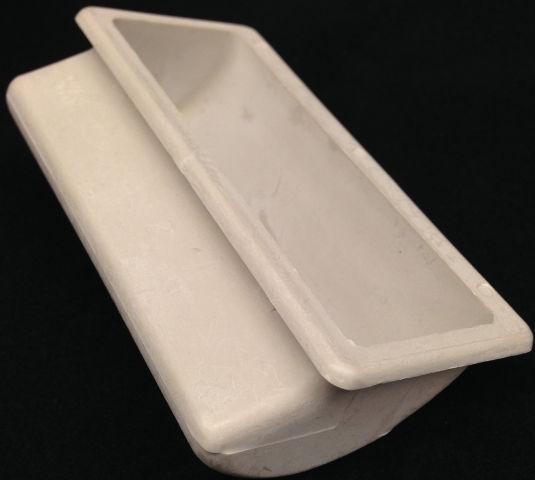

1861702401 |
Ice slideway |
$32.00 |
|
|
5 |
 |
1854005700 |
Magnetism switch/Ice full sensor replaces1854005801 |
$29.00 |
|
|
6 |
 |
1880025700 |
Evaporator |
$585.00 |
|
|
11 |
 |
1880001701 |
Floater valve (replaces 1880001700) |
$29.00 |
|
|
12 |
 |
1864515100 |
Support |
$35.00 |
|
|
13 |
 |
1858441500 |
Fan motor capacitor(6uf) |
$37.00 |
|
|
14 |
 |

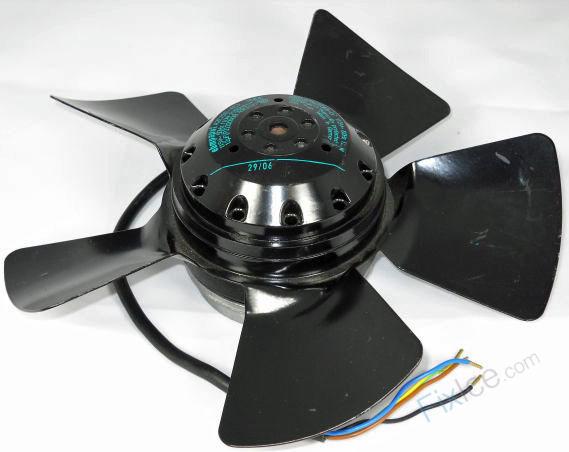

1858202100 |
Condenser fan motor |
$140.00 |
|
|
16 |
 |
1864500100 |
Water inlet pipe |
$10.00 |
|
|
17 |
 |
1864529100 |
Water inlet pipe screw |
$8.00 |
|
|
19 |
 |
1864526301 |
Water inlet |
$9.00 |
|
|
22 |
 |

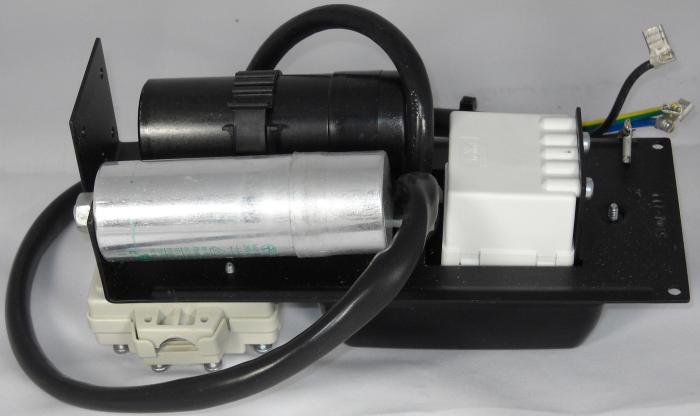

1858441400 |
Starting device component |
$181.00 |
|
|
23 |
 |

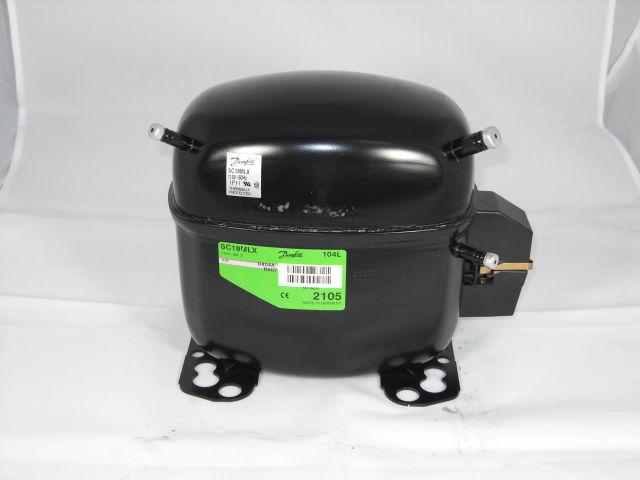

1858421200 |
Compressor |
$599.00 |
|
 |
26 |
 |
1880013203 |
Condenser |
$220.00 |
|
|
27 |
 |

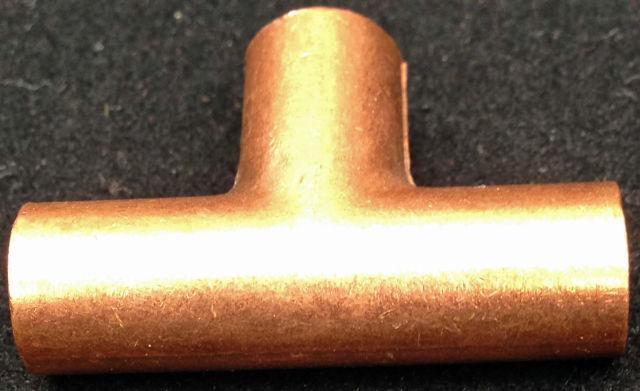

1861530600 |
T shape multi-connection pipe |
$4.00 |
|
|
28 |
 |
1854702800 |
Hot gas valve body |
$85.00 |
|
|
29 |
 |
1861530300 |
Multi-connection pipe |
$3.00 |
|
|
30 |
 |
1854702700 |
Hot gas valve coil |
$41.00 |
|
|
32 |
 |
1851700700 |
Temperature sensor of condenser replaces 1851700802 |
$49.00 |
|
|
35 |
 |
1854601900 |
Expansion valve replaced by1854601901 |
$163.00 |
|
 |
36 |
 |
1880007900 |
Drier |
$23.00 |
|
|
40 |
 |
1854000600 |
Power switch |
$7.00 |
|
|
41 |
 |
1853702003 |
Wiring harness |
$50.00 |
|
|
42 |
 |
1854205000 |
Control box |
$287.00 |
|
 |
43 |
 |
1854800300 |
15A Fuse of Controller |
$2.00 |
|
|
50 |
 |
1864650201 |
Knob |
$3.00 |
|
|
52 |
 |
1880002000 |
Water distributor tube |
$23.00 |
|
|
53 |
 |
1811330100 |
Water out of pump |
$8.00 |
|
|
55 |
 |
1858904200 |
Water pump |
$279.00 |
|
|
56 |
 |
1864207200 |
Drain pipe |
$33.00 |
|
|
57 |
 |
1864523300 |
Drain pipe connector |
$1.00 |
|
|
58 |
 |
1864523400 |
Drain pipe hex nut |
$4.00 |
|
|
59 |
 |
1864508100 |
Drain plug |
$4.00 |
|
 |
60 |
 |
1864619100 |
Drain nut |
$4.00 |
|
|
61 |
 |
1851700900 |
Evaporator sensor |
$28.00 |
|
|
