| Diagram# |
Image |
Part No. |
Description |
Price |
Qty |
|
|
 |
1854800200 |
0.5A fuse of controller |
$5.00 |
|
|
|
 |
1854800300 |
15A Fuse of Controller |
$2.00 |
|
|
|
 |
1880002110 |
Water filter |
$30.00 |
|
 |
| 2 |
 |
1849738401 |

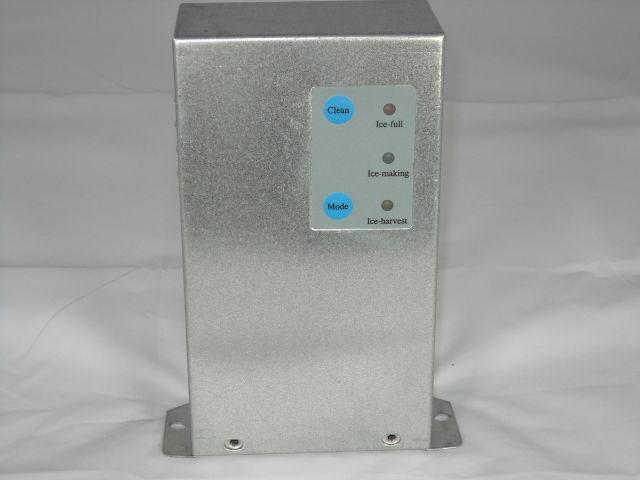

Control Box BCIM replacement for 1854200302 |
$210.00 |
|
|
| 2 |
 |
1854200302 |
Control box replaced by 1849738401 and 1849738404 |
$189.00 |
|
|
| 2.1 |
 |
1851700100 |
Temperature sensor of condenser |
$31.00 |
|
|
| 2.2 |
 |
1851700200 |
Temperature sensor of evaporator replaces 1851701002 |
$25.00 |
|
|
| 3.1 |
 |
1880014200 |
Left foot |
$6.00 |
|
|
| 3.2 |
 |
1880014300 |
Right foot |
$6.00 |
|
|
| 4 |
 |
1853700403 |
Wiring harness |
$28.00 |
|
|
| 5 |
 |
1880007500 |
Drier |
$11.00 |
|
|
| 7 |
 |
1853110500 |
Power cord |
$18.00 |
|
|
| 8 |
 |
1854000101 |
Power switch |
$13.00 |
|
|
| 9 |
 |
1880012201 |
Condenser |
$124.00 |
|
|
| 11 |
 |
1854701210 |
Hot gas valve coil (042N4212) |
$43.00 |
|
|
| 11.1 |
 |
1854701800 |
Hot gas valve body(EVU3) |
$69.00 |
|
|
| 12 |
 |
1805000200 |
Capillary tube |
$7.00 |
|
|
| 16 |
 |
1858400200 |

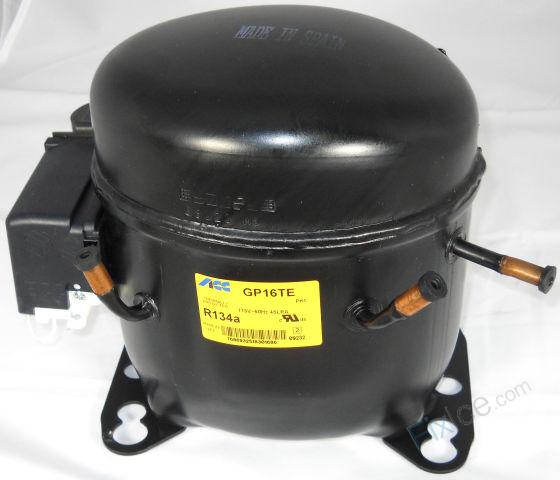

Compressor |
$320.00 |
|
|
| 18 |
 |
1858201300 |
Motor 10W |
$89.00 |
|
|
| 18.1 |
|
1860700400 |
Fan bladeφ230X28° |
$5.00 |
|
|
| 20 |
 |
1864800100 |
Ice scoop |
$6.00 |
|
|
| 27 |
 |
1864506100 |
Long drain pipe |
$27.00 |
|
|
| 28 |
 |
1864538100 |
Nut of the draining hole(including the rubber gasket) |
$2.00 |
|
|
| 29 |
 |
1811306014 |
Water supply pipe (020) |
$35.00 |
|
|
| 31 |
 |
1854703200 |
Water inlet valve |
$79.00 |
|
|
| 32 |
 |
1864529100 |
Water inlet pipe screw |
$8.00 |
|
|
| 38 |
 |
1858900600 |
Water pump replaces 1858900500 and 1858900900
|
$99.00 |
|
|
| 45 |
 |
1864806100 |
Door frame |
$64.00 |
|
|
| 46 |
 |
1864806500 |

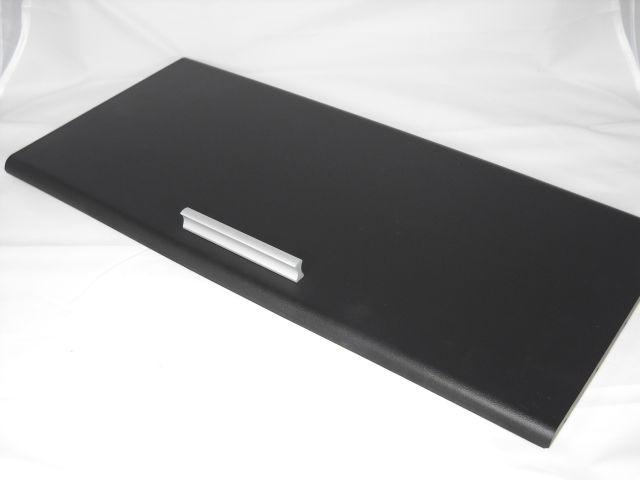

Door 1 |
$50.00 |
|
|
| 48 |
 |
1861702200 |
Door handle |
$6.00 |
|
|
| 49 |
 |
1880023501 |
Evaporator(ice mold) |
$191.00 |
|
|
| 54 |
 |
1864803500 |
Rubber 1 of sprinkler |
$4.00 |
|
|
| 54 |
 |
1864803600 |
Rubber 2 of sprinkler |
$5.00 |
|
|
| 54 |
 |
1864803700 |
Rubbe r3 of sprinkler |
$3.00 |
|
|
| 58 |
 |
1861701001 |
Ice slideway |
$45.00 |
|
|
| 59 |
 |
1864612100 |
Small nozzle |
$2.50 |
|
|
| 60 |
 |
1864603200 |
Small plug of sprinkler |
$0.00 |
|
|
| 61 |
 |
1861400700 |
Sprinkler |
$29.00 |
|
|
| 63 |
 |
1861801403 |
Water bin |
$78.00 |
|
|
| 64 |
 |
1861703400 |
Left flake |
$12.00 |
|
|
| 65 |
 |
1864600200 |
Flake cover |
$35.00 |
|
|
| 66 |
 |
1861703500 |
Right flake |
$12.00 |
|
|
| 73 |
 |
1855501200 |
Ice full sensor |
$20.00 |
|
|
