| Diagram# |
Image |
Part No. |
Description |
Price |
Qty |
|
|
 |
1854800500 |
3A fuse of controller |
$1.00 |
|
|
| 1 |
 |

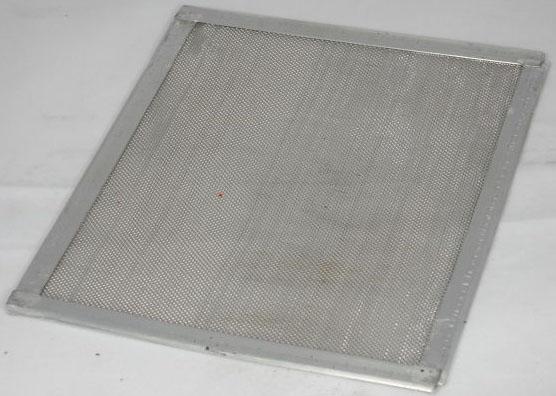

1864527300 |
Air filter |
$5.00 |
|
|
| 3 |
 |
1885000202 |
Condenser |
$129.00 |
|
|
| 4 |
 |
1861511002 |
Discharge tube |
$12.00 |
|
|
| 5 |
 |
1858421900 |
Compressor |
$265.00 |
|
|
| 6 |
 |

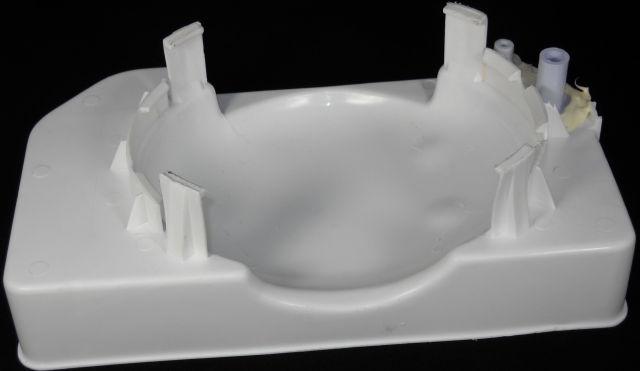

1864801900 ref |
Water Pan on compressor |
$11.00 |
|
 |
| 7 |
 |
1866912301 |
Water level alarm sensor |
$5.00 |
|
|
| 9.1 |
 |
549738100 |
Fan blade (ø200X28°) |
$29.00 |
|
|
| 9.2 |
 |
1858200601 |
EBM motor 5W |
$74.00 |
|
|
| 13 |
 |
1864619600 |
Melting water drain nut |
$2.00 |
|
|
| 14 |
|
1813406016(FIM/HDIM35) |
Melting water drain plug |
$2.00 |
|
|
| 15 |
 |

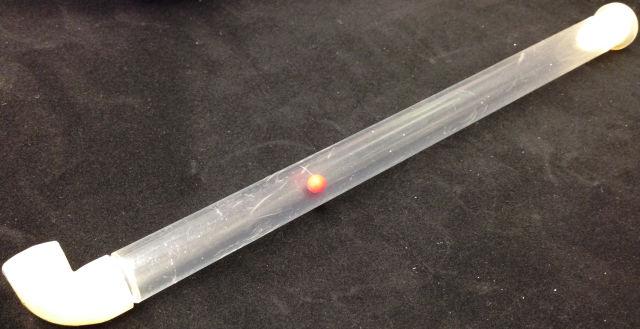

1864507301 |
Water level show pipe |
$2.00 |
|
|
| 16 |
 |
1864805200 |
Ice storage bin |
$50.00 |
|
|
| 18 |
 |
1880017701 |
Evaporator(ice mold) |
$204.00 |
|
|
| 19 |
 |
1880001600 |
Water distribution tube |
$6.00 |
|
|
| 20 |
 |
1861701600 |
Ice slideway replaced by 1861701601 |
$30.00 |
|
|
| 21 |
 |
1851700501 |
Temperature sensor of the evaporator |
$25.00 |
|
|
| 22 |
 |
1854005300 |
magnetism switch |
$26.00 |
|
|
| 25 |
 |
1864800100 |
Ice scoop |
$6.00 |
|
|
| 26 |
|
1864400201 |
Top hinge cover |
$4.00 |
|
|
| 30 |
 |

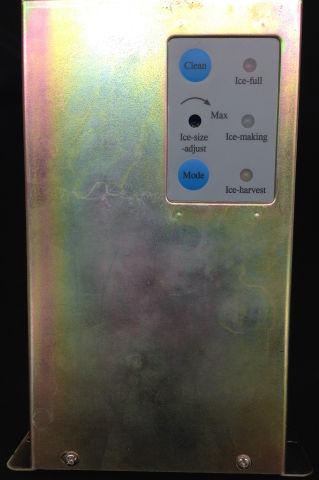

1854205300 |
Control box |
$201.00 |
|
|
| 33 |
 |

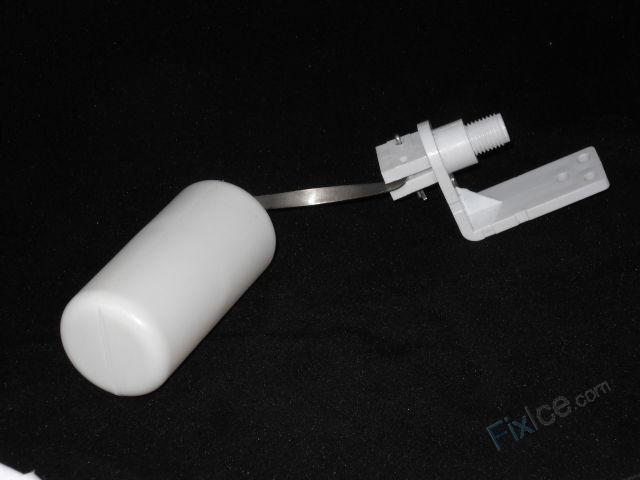

1880001700 |
Floater valve ( replaced by 1880001701) |
$29.00 |
|
|
| 36 |
 |
1864508100 |
Drain plug |
$4.00 |
|
|
| 37 |
 |
1864019701 |
Drainage nut |
$1.00 |
|
|
| 41 |
 |
1858900600 |
Water pump replaces 1858900500 and 1858900900
|
$99.00 |
|
|
| 41 |
|
1858900500 |
Water pump (replaced by 1858900600) ) |
$99.00 |
|
|
| 46 |
|
1853112300 |
Power cord |
$21.00 |
|
|
| 47 |
|
1853702600 |
Wiring harness |
$29.00 |
|
|
| 49 |
 |
1811306014 |
Water supply pipe (020) |
$35.00 |
|
|
| 51 |
 |
1864526301 |
Water inlet |
$9.00 |
|
|
| 53 |
 |
1864507400 |
Long drain pipe |
$20.00 |
|
|
| 54 |
 |
1864603800 |
Drainage plug |
$1.00 |
|
|
| 58 |
 |

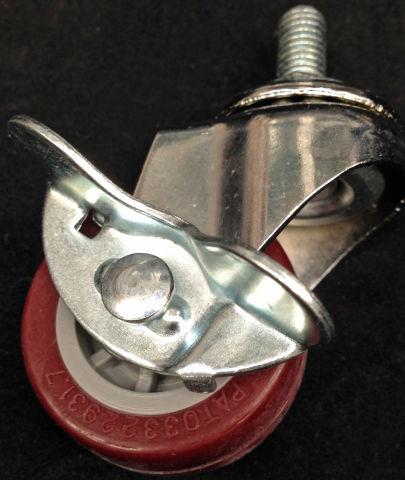

1880015400 |
Front roller/ Brake Caster |
$6.00 |
|
|
| 59 |
 |
1880015300 |
Rear roller/ Versatile Caster |
$6.00 |
|
|
| 61.1 |
 |
1880014800 |
Right foot |
$7.00 |
|
|
| 61.2 |
 |
1880014700 |
Left foot |
$7.00 |
|
|
| 64.1 |
 |
1854000700 |
Clean switch |
$7.00 |
|
|
| 64.2 |
 |
1854000900 |
Power ON/OFF switch |
$6.00 |
|
|
| 65 |
|
1860602000 |
Front panel |
$11.00 |
|
|
| 66 |
|
1805000410 |
Capillary tube |
$4.00 |
|
|
| 67 |
 |
1880007500 |
Drier |
$11.00 |
|
|
| 70.1 |
 |
1854703310 |
Hot gas valve body (Zhongbao) |
$97.00 |
|
|
| 70.2 |
 |
1854703320 |
Hot gas valve coil (Zhongbao) |
$45.00 |
|
|
| 71 |
 |
1851700401 |
Temperature sensor of the condenser |
$37.00 |
|
|
