Daewoo: DIM-250


DIM-250 ice maker parts

Search
 ice maker parts illustration

Grid View:

Diagram# Image Part No. Description Price Qty
0 Part #: 1864509200 - Gasket/Washer of water inlet connector 1864509200 Gasket/Washer of water inlet connector $1.00 Add to Cart Add to Cart
2 Part #: 1864800100 - Ice scoop 1864800100 Ice scoop $9.95 Add to Cart Add to Cart
6 Part #: 1864514100 - Drain nut 1864514100 Drain nut $3.00 Not In Stock
7 Part #: 1864536200 - Drain plug 1864536200 Drain plug $1.00 Add to Cart Add to Cart
10 Part #: 1854701210 - Hot gas valve coil (042N4212) 1854701210 Hot gas valve coil (042N4212) $43.00 Add to Cart Add to Cart

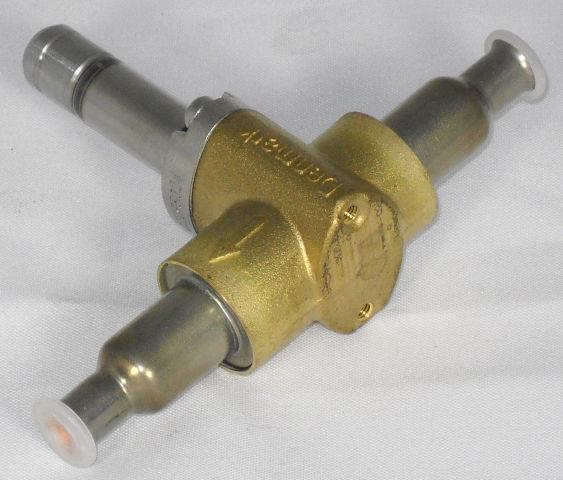

11 Part #: 1854701800 - Hot gas valve body(EVU3) 1854701800 Hot gas valve body(EVU3) $69.00 Add to Cart Add to Cart
15 Part #: 1811306014 - Water supply pipe (020) 1811306014 Water supply pipe (020) $35.00 Add to Cart Add to Cart
16 Part #: 1858420900 - Compressor 1858420900 Compressor $399.00 Add to Cart Add to Cart
17 Part #: 1858442100 - Starting capacitor 1858442100 Starting capacitor $45.00 Add to Cart Add to Cart
17.1 Part #: 1858451200 - Protector 1858451200 Protector $39.00 Add to Cart Add to Cart

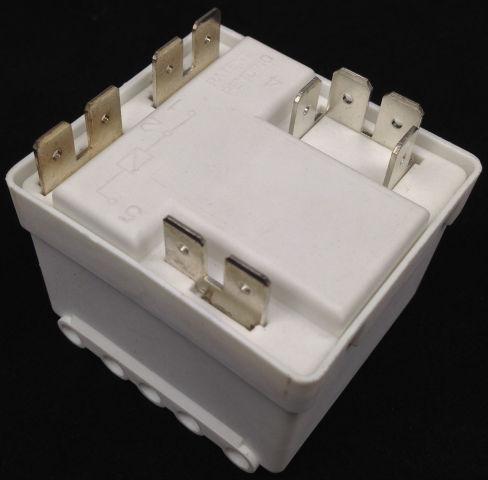

17.2 Part #: 1858461000 - Starting relay 1858461000 Starting relay $56.00 Add to Cart Add to Cart

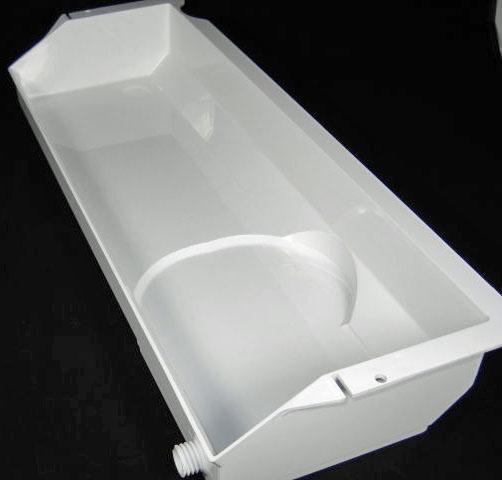

18 Part #: 1864802001 - Water trough 1864802001 Water trough $57.00 Add to Cart Add to Cart
22 Part #: 1880001701 - Floater valve (replaces 1880001700) 1880001701 Floater valve (replaces 1880001700) $29.00 Not In Stock
23 Part #: 1864529100 - Water inlet pipe screw 1864529100 Water inlet pipe screw $8.00 Add to Cart Add to Cart
24 Part #: 1864500100 - Water inlet pipe 1864500100 Water inlet pipe $10.00 Add to Cart Add to Cart
25 Part #: 1811330100 - Water out of pump 1811330100 Water out of pump $8.00 Add to Cart Add to Cart

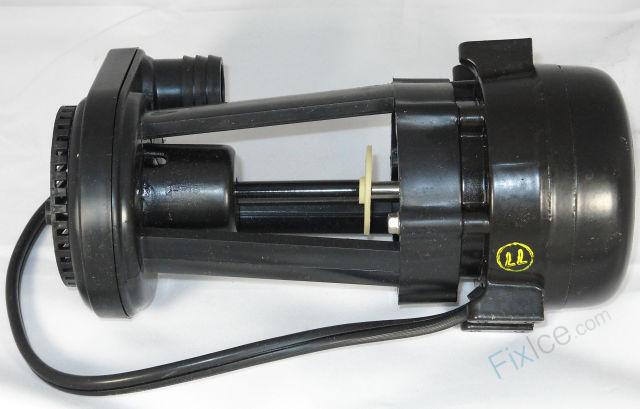

26 Part #: 1858904000 - Water pump replaced by 185904400  1858904000 Water pump replaced by 185904400 $299.00 Add to Cart Add to Cart

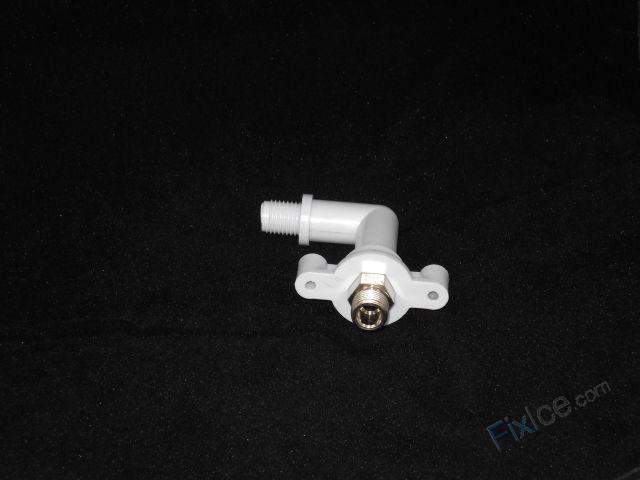

27 Part #: 1864526301 - Water inlet 1864526301 Water inlet $9.00 Add to Cart Add to Cart

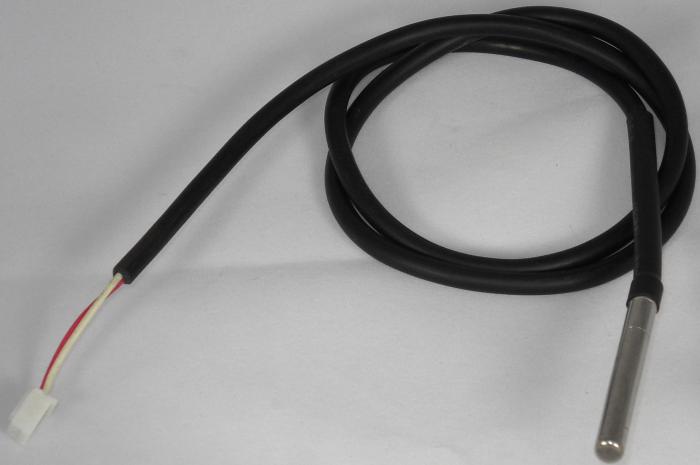

28 Part #: 1851700802 - Condenser sensor 1851700802 Condenser sensor $49.00 Add to Cart Add to Cart
29 Part #: 1851701002 - Evaporator sensor replaced by 1851700200 1851701002 Evaporator sensor replaced by 1851700200 $25.00 Add to Cart Add to Cart

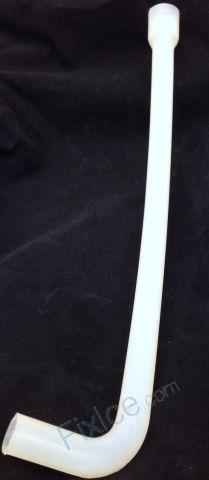

30 Part #: 1864532701 - Water drain pipe 1864532701 Water drain pipe $33.00 Not In Stock

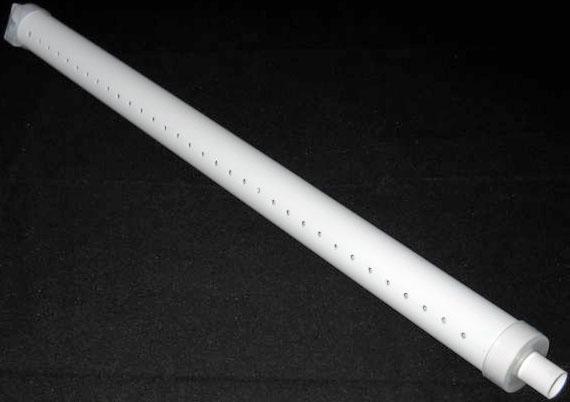

31 Part #: 1880001900 - Water distribution tube/sprinkler 1880001900 Water distribution tube/sprinkler $40.00 Add to Cart Add to Cart

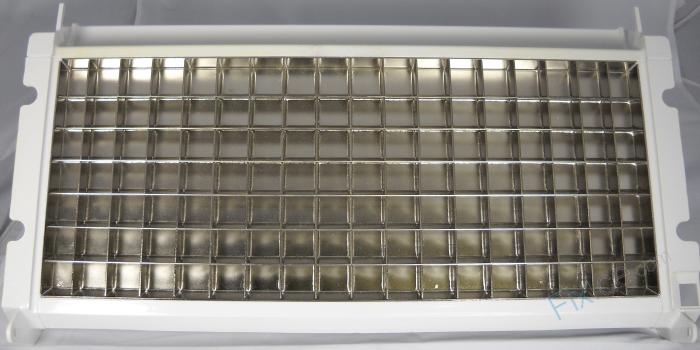

32 Part #: 1880024700 - Evaporator (Ice Mold) 1880024700 Evaporator (Ice Mold) $525.00 Not In Stock

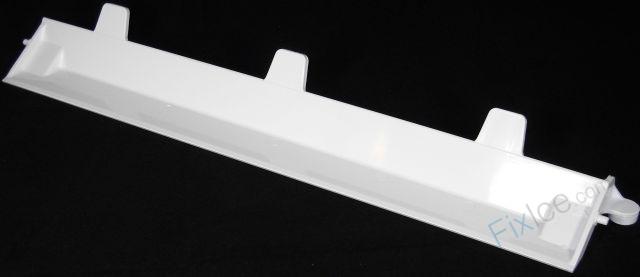

33 Part #: 1861701802 - Ice slideway (Bin Full probe) 1861701802 Ice slideway (Bin Full probe) $35.00 Not In Stock
35 Part #: 1853701903 - Wiring harness 1853701903 Wiring harness $48.00 Add to Cart Add to Cart
36 Part #: 1854005801 - Magnetism switch (5700) 1854005801 Magnetism switch (5700) $29.00 Add to Cart Add to Cart
38 Part #: 1853110500 - Power cord 1853110500 Power cord $18.00 Add to Cart Add to Cart
41 Part #: 1858200601 - EBM motor 5W 1858200601 EBM motor 5W $74.00 Add to Cart Add to Cart
42 Part #: 549738100 - Fan blade (ø200X28°) 549738100 Fan blade (ø200X28°) $29.00 Add to Cart Add to Cart
43 Part #: 1858201300 - Motor 10W 1858201300 Motor 10W $89.00 Add to Cart Add to Cart

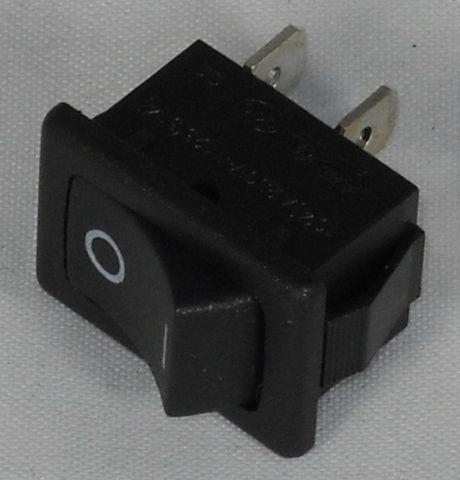

49 Part #: 1854000500 - Power switch 1854000500 Power switch $8.00 Add to Cart Add to Cart
50 Part #: 1864901700 - Operator buttom cover 1864901700 Operator buttom cover $1.00 Add to Cart Add to Cart

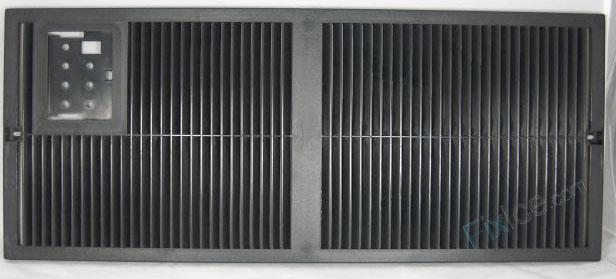

51 Part #: 1860600802 - Under louver 1860600802 Under louver $76.00 Not In Stock
52 Part #: 1864806902 - Door Complete 1864806902 Door Complete $55.00 Not In Stock
54 Part #: 1803200100 - Locked screw 1803200100 Locked screw $11.00 Add to Cart Add to Cart

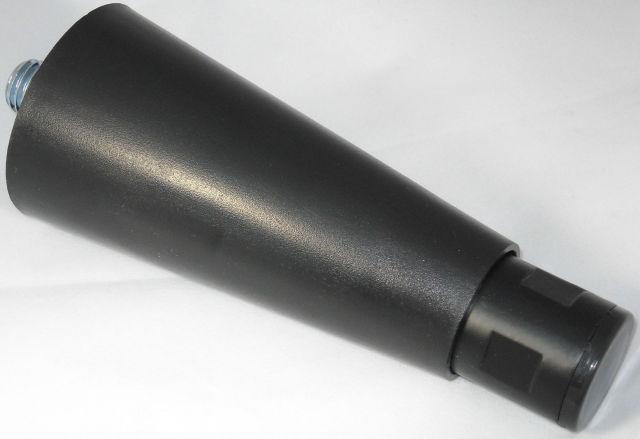

55 Part #: 1880014901 - Adjustable leg 1880014901 Adjustable leg $20.00 Not In Stock
57 Part #: 1880007900 - Drier 1880007900 Drier $23.00 Add to Cart Add to Cart

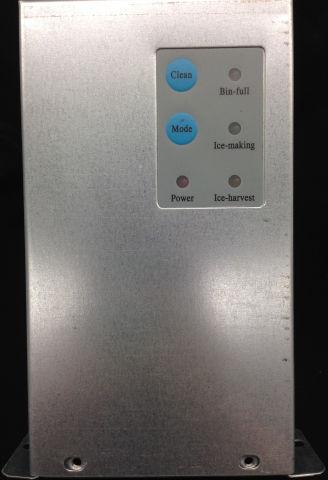

59 Part #: 1860617100 - Button control panel 1860617100 Button control panel $100.00 Add to Cart Add to Cart
60 Part #: 1854800300 - 15A Fuse of Controller 1854800300 15A Fuse of Controller $2.00 Add to Cart Add to Cart
61 Part #: 1854204602 - Control box 1854204602 Control box $225.00 Add to Cart Add to Cart
62 Part #: 1880013101 - Condenser 1880013101 Condenser $334.00 Add to Cart Add to Cart
