| Diagram# |
Image |
Part No. |
Description |
Price |
Qty |
|
|
 |
1871017500 |
complete door BCIM44 |
$190.00 |
|
|
| 1 |
|
1885000900 |
CONDENSER Not LG |
$75.00 |
|
|
| 3 |
 |

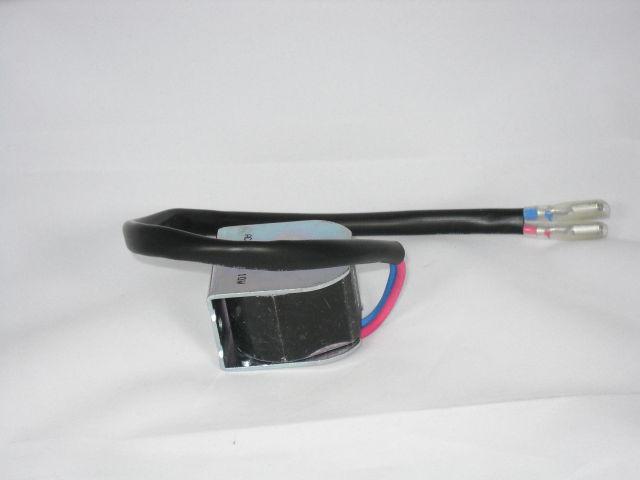

1854703321 |
hot gas valve coil FDF2A |
$49.00 |
|
|
| 4 |
 |
1880007500 |
Drier |
$11.00 |
|
|
| 8 |
|
1858402100 |
COMPRESSOR (BCIM44 LGR) |
$210.00 |
|
|
| 8.1 |
|
1858402110 |
STARTING RELAY (BCIM44 LGR) |
$25.00 |
|
|
| 8.2 |
|
1858402120 |
OVERLOAD PROTECTION BCIM44LGR |
$25.00 |
|
|
| 9 |
 |
1858200601 |
EBM motor 5W |
$74.00 |
|
|
| 9.2 |
 |
549738100 |
Fan blade (ø200X28°) |
$29.00 |
|
|
| 10 |
|
1861511601 |
VENT-PIPE |
$9.00 |
|
|
| 20 |
|
1853113800 |
Power cord |
$15.00 |
|
|
| 23 |
 |
1858900600 |
Water pump replaces 1858900500 and 1858900900
|
$99.00 |
|
|
| 25 |
|
1864546103 |
Back water tube |
$16.00 |
|
|
| 26 |
 |
1864512101 |
Pump pipe |
$10.00 |
|
|
| 27 |
 |
1860413503 |
Bottom Hinge |
$5.00 |
|
|
| 28 |
 |
1854303600 |
Button Control Panel (with chip for controller) |
$90.00 |
|
|
| 30 |
|
1845744001 |
Louver BCIM44 |
$25.00 |
|
|
| 32 |
 |
1880001701 |
Floater valve (replaces 1880001700) |
$29.00 |
|
|
| 33 |
 |
1864526301 |
Water inlet |
$9.00 |
|
|
| 34 |
 |
1864529100 |
Water inlet pipe screw |
$8.00 |
|
|
| 38 |
|
1811306020 |
Water supply hose |
$25.00 |
|
|
| 39 |
 |

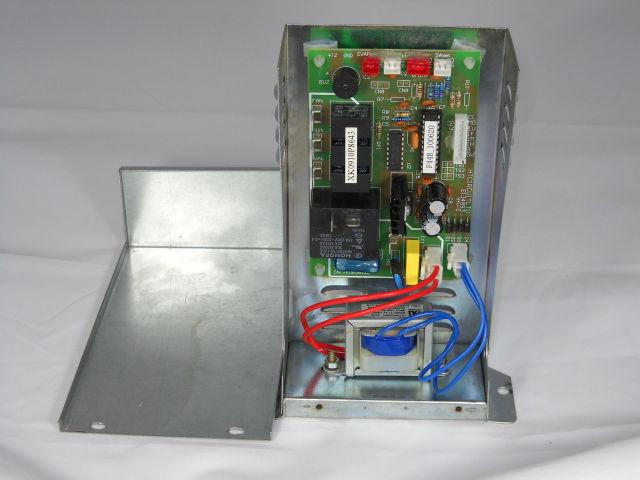

1854205802 |
Control box BCIM44 replaces 1854205800 |
$175.00 |
|
 |
| 39.1 |
 |

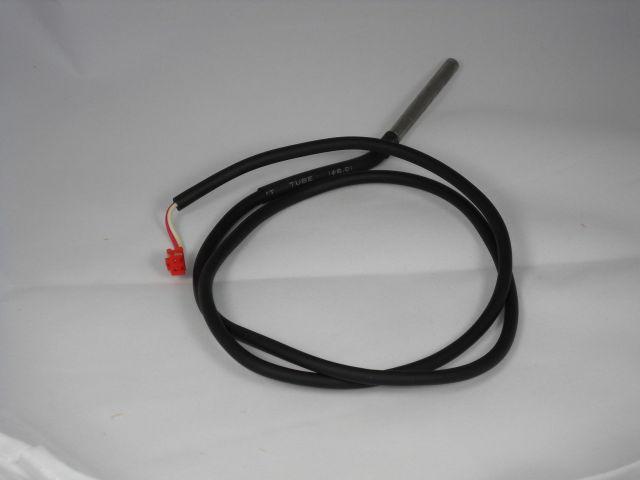

1851700401 |
Temperature sensor of the condenser |
$37.00 |
|
|
| 39.2 |
 |
1851700501 |
Temperature sensor of the evaporator |
$25.00 |
|
|
| 39.3 |
 |
1854800500 |
3A fuse of controller |
$1.00 |
|
|
| 43 |
 |
1864400101 |
Top hinge cover |
$4.00 |
|
|
| 44 |
|
1864800101 |
Ice scoop |
$5.00 |
|
|
| 46 |
 |

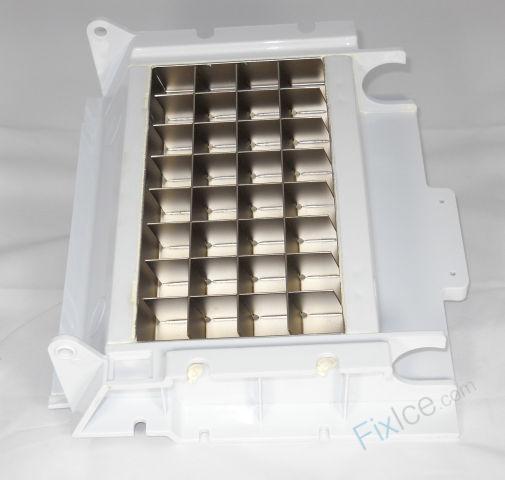

1880017701 |
Evaporator(ice mold) |
$204.00 |
|
|
| 48 |
 |
1861701601 |
Ice full probe (slideway) - Replaces 1861701600 |
$34.00 |
|
|
| 49 |
 |

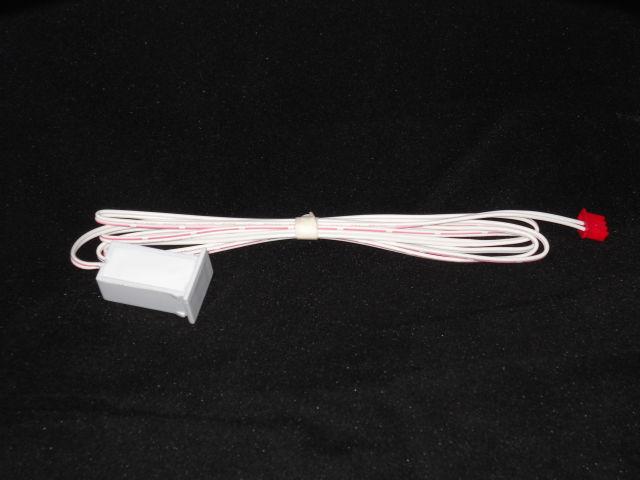

1854005700 |
Magnetism switch/Ice full sensor replaces1854005801 |
$29.00 |
|
|
| 50 |
|
1861701700 |
Handle |
$17.00 |
|
|
| 63 |
|
1811306049 |
Drain pipe |
$25.00 |
|
|
| 64 |
 |
1864603800 |
Drainage plug |
$1.00 |
|
|
